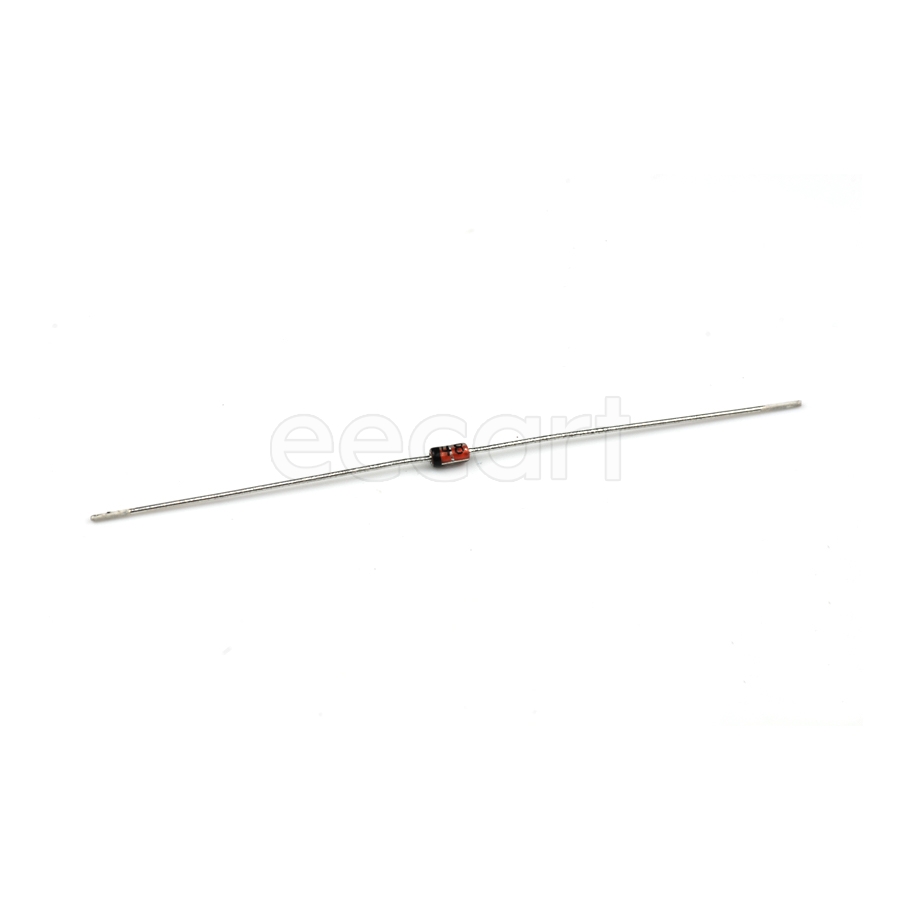

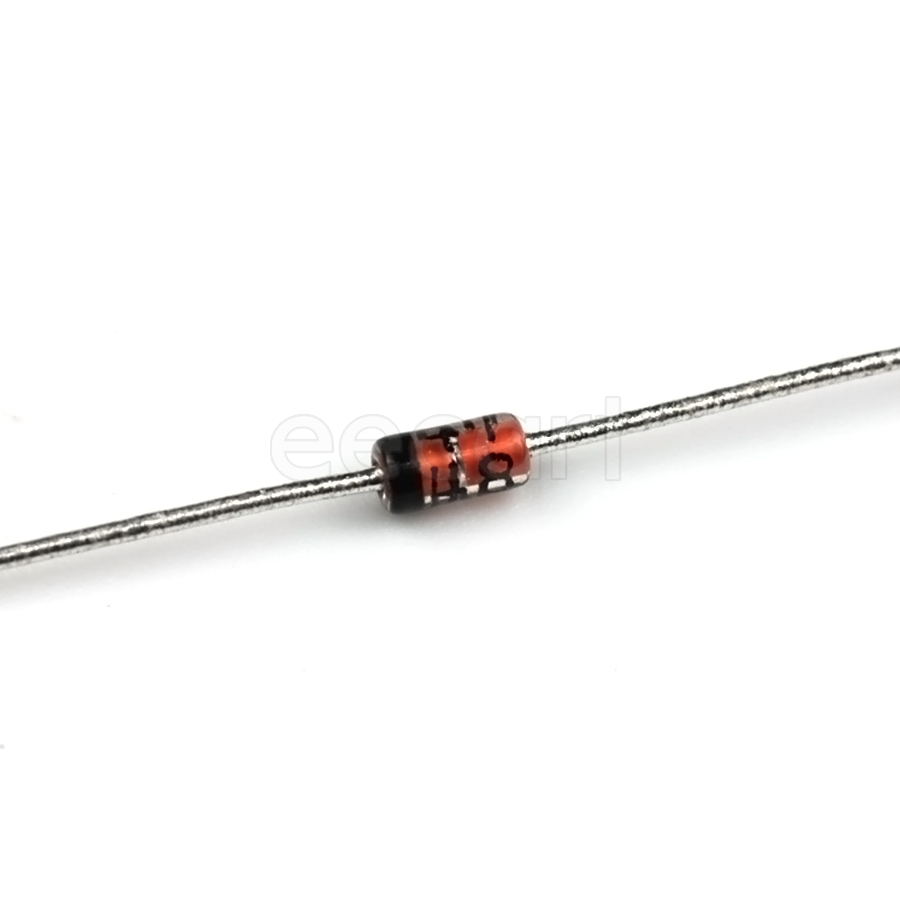

1N4148,113
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
1N4148,113
Datasheet:
Description:
Rectifier Diodes ALF2 Through Hole Standard Single Forward Current:200 mA Forward Voltage:1 V Reverse Voltage:100 V
| Parameter | Value |
|---|---|
| Capacitance | 4 pF |
| Length | 4.25 mm |
| Width | 1.85 mm |
| Termination | Axial |
| Diameter | 1.85 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 1.85 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 75 V |
| REACH SVHC | No SVHC |
| Type | Standard |
| Current | 2 A |
| Forward Current | 200 mA |
| Forward Voltage | 1 V |
| Lifecycle Status | Obsolete (Last Updated: 4 days ago) |
| Max Power Dissipation | 500 mW |
| Power Dissipation | 500 mW |
| Reverse Recovery Time | 4 ns |
| Average Rectified Current | 200 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 100 V |
| Element Configuration | Single |
| Max Surge Current | 4 A |
| Forward Surge Current (Ifsm) | 4 A |
| Reverse Voltage | 100 V |
| Peak Non-Repetitive Surge Current | 4 A |
| Reverse Current | 25 nA |
| Recovery Time | 4 ns |
